在 Laravel 中集成 Swoole 实现 WebSocket 服务器
2019-12-10
本博客所有文章采用的授权方式为 自由转载-非商用-非衍生-保持署名 ，转载请务必注明出处，谢谢。
声明：
本博客欢迎转发，但请保留原作者信息!
博客地址：任志帆的博客;
内容系本人学习、研究和总结，如有雷同，实属荣幸！
- 1.创建 App/Services/WebSocketService.php文件
- 2. 更改配置config/laravels.php
- 3. 配置 Nginx 支持 WebSocket
- 4.重载配置并重启Laravels服务
- 5.配置wss服务
- 6.配置测试页面
在 Laravel 中集成 Swoole 实现 WebSocket 服务器
1.创建 App/Services/WebSocketService.php文件
<?php
namespace App\Services;
use Hhxsv5\LaravelS\Swoole\WebSocketHandlerInterface;
use Illuminate\Support\Facades\Log;
use Swoole\Http\Request;
use Swoole\WebSocket\Frame;
use Swoole\WebSocket\Server;
class WebSocketService implements WebSocketHandlerInterface
{
public function __construct()
{
}
// 连接建立时触发
public function onOpen(Server $server, Request $request)
{
// 在触发 WebSocket 连接建立事件之前，Laravel 应用初始化的生命周期已经结束，你可以在这里获取 Laravel 请求和会话数据
// 调用 push 方法向客户端推送数据，fd 是客户端连接标识字段
Log::info('WebSocket 连接建立');
$server->push($request->fd, 'Welcome to WebSocket Server built on LaravelS');
}
// 收到消息时触发
public function onMessage(Server $server, Frame $frame)
{
// 调用 push 方法向客户端推送数据
$server->push($frame->fd, "You say {".$frame->data ."}at " . date('Y-m-d H:i:s'));
}
// 关闭连接时触发
public function onClose(Server $server, $fd, $reactorId)
{
Log::info('WebSocket 连接关闭');
}
}
2. 更改配置config/laravels.php
// ...
'websocket' => [
'enable' => true, // 看清楚，这里是true
'handler' => \App\Services\WebSocketService::class,
],
'swoole' => [
//...
// dispatch_mode只能设置为2、4、5，https://wiki.swoole.com/wiki/page/277.html
'dispatch_mode' => 2,
//...
],
// ...
3. 配置 Nginx 支持 WebSocket
map $http_upgrade $connection_upgrade {
default upgrade;
'' close;
}
upstream swoole {
# 通过 IP:Port 连接
server 127.0.0.1:5200 weight=5 max_fails=3 fail_timeout=30s;
# 通过 UnixSocket Stream 连接，小诀窍：将socket文件放在/dev/shm目录下，可获得更好的性能
#server unix:/xxxpath/laravel-s-test/storage/laravels.sock weight=5 max_fails=3 fail_timeout=30s;
#server 192.168.1.1:5200 weight=3 max_fails=3 fail_timeout=30s;
#server 192.168.1.2:5200 backup;
keepalive 16;
}
server {
listen 80;
# 别忘了绑Host哟
server_name laravels.com;
root /xxxpath/laravel-s-test/public;
access_log /yyypath/log/nginx/$server_name.access.log main;
autoindex off;
index index.html index.htm;
# Nginx处理静态资源(建议开启gzip)，LaravelS处理动态资源。
location / {
try_files $uri @laravels;
}
# 当请求PHP文件时直接响应404，防止暴露public/*.php
#location ~* \.php$ {
# return 404;
#}
# Http和WebSocket共存，Nginx通过location区分
# !!! WebSocket连接时路径为/ws
# Javascript: var ws = new WebSocket("ws://laravels.com/ws");
location =/ws {
# proxy_connect_timeout 60s;
# proxy_send_timeout 60s;
# proxy_read_timeout：如果60秒内被代理的服务器没有响应数据给Nginx，那么Nginx会关闭当前连接；同时，Swoole的心跳设置也会影响连接的关闭
# proxy_read_timeout 60s;
proxy_http_version 1.1;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Real-PORT $remote_port;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header Host $http_host;
proxy_set_header Scheme $scheme;
proxy_set_header Server-Protocol $server_protocol;
proxy_set_header Server-Name $server_name;
proxy_set_header Server-Addr $server_addr;
proxy_set_header Server-Port $server_port;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header Connection $connection_upgrade;
proxy_pass http://swoole;
}
location @laravels {
# proxy_connect_timeout 60s;
# proxy_send_timeout 60s;
# proxy_read_timeout 60s;
proxy_http_version 1.1;
proxy_set_header Connection "";
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Real-PORT $remote_port;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_set_header Host $http_host;
proxy_set_header Scheme $scheme;
proxy_set_header Server-Protocol $server_protocol;
proxy_set_header Server-Name $server_name;
proxy_set_header Server-Addr $server_addr;
proxy_set_header Server-Port $server_port;
proxy_pass http://swoole;
}
}
4.重载配置并重启Laravels服务
php bin/laravels reload
php bin/laravels restart
这里切记一定要重启 否则websocket无法连接上
5.配置wss服务
这里只需要把你自己配置的域名升级为https即可 亲测有效
6.配置测试页面
6-1 在web.php新增路由
Route::get('/ws', function () {
return view('ws');
});
6-2 在resources/views新增ws.blade.php
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Chat Client</title>
</head>
<body>
<script>
window.onload = function () {
var nick = prompt("Enter your nickname");
var input = document.getElementById("input");
input.focus();
// 初始化客户端套接字并建立连接
var socket = new WebSocket("wss://你的域名/ws");
// 连接建立时触发
socket.onopen = function (event) {
console.log("Connection open ...");
}
// 接收到服务端推送时执行
socket.onmessage = function (event) {
var msg = event.data;
var node = document.createTextNode(msg);
var div = document.createElement("div");
div.appendChild(node);
document.body.insertBefore(div, input);
input.scrollIntoView();
};
// 连接关闭时触发
socket.onclose = function (event) {
console.log("Connection closed ...");
}
input.onchange = function () {
var msg = nick + ": " + input.value;
// 将输入框变更信息通过 send 方法发送到服务器
socket.send(msg);
input.value = "";
};
}
</script>
<input id="input" style="width: 100%;">
</body>
</html>
6-3 在页面测试如下

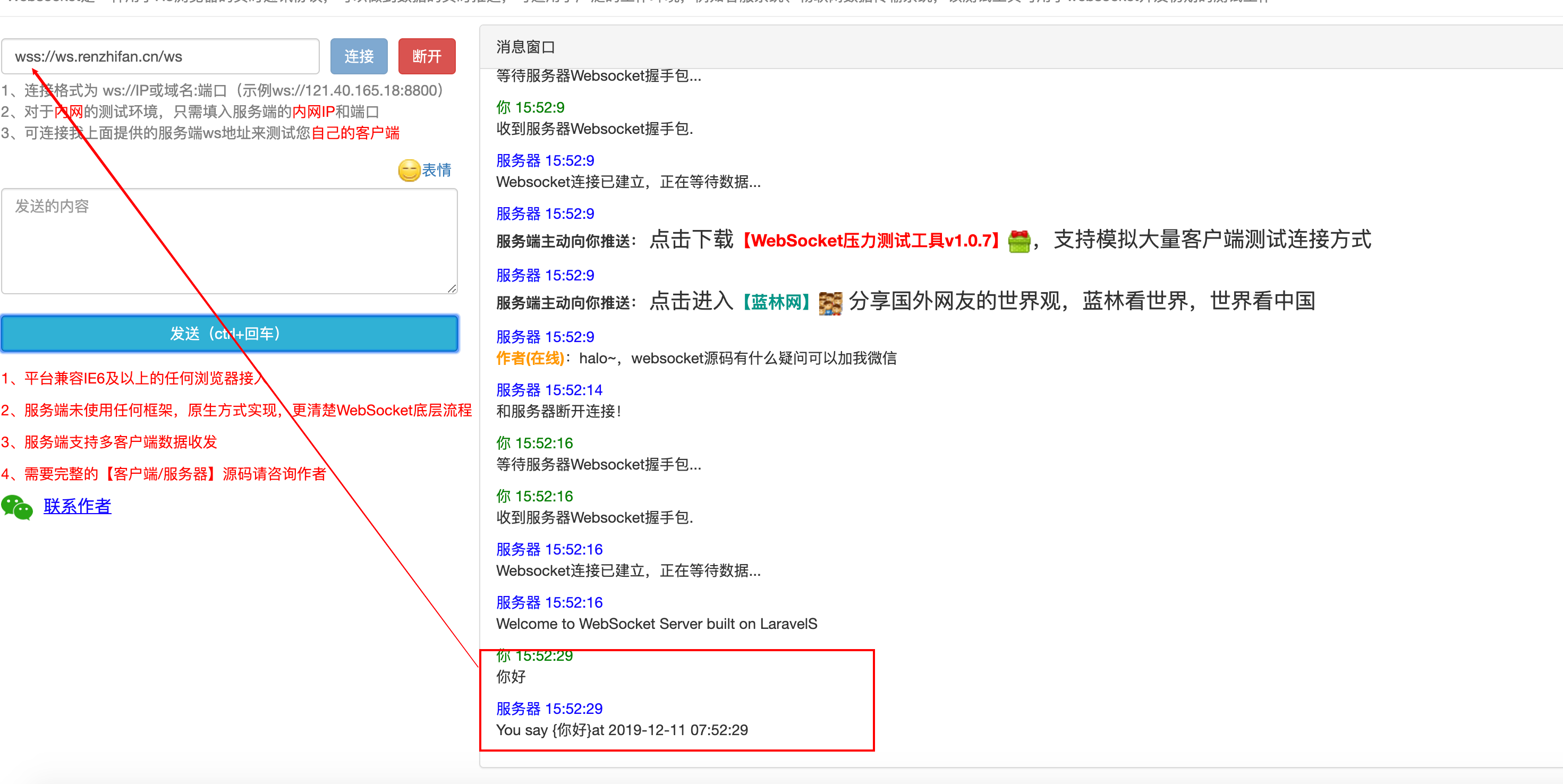

测试页面效果

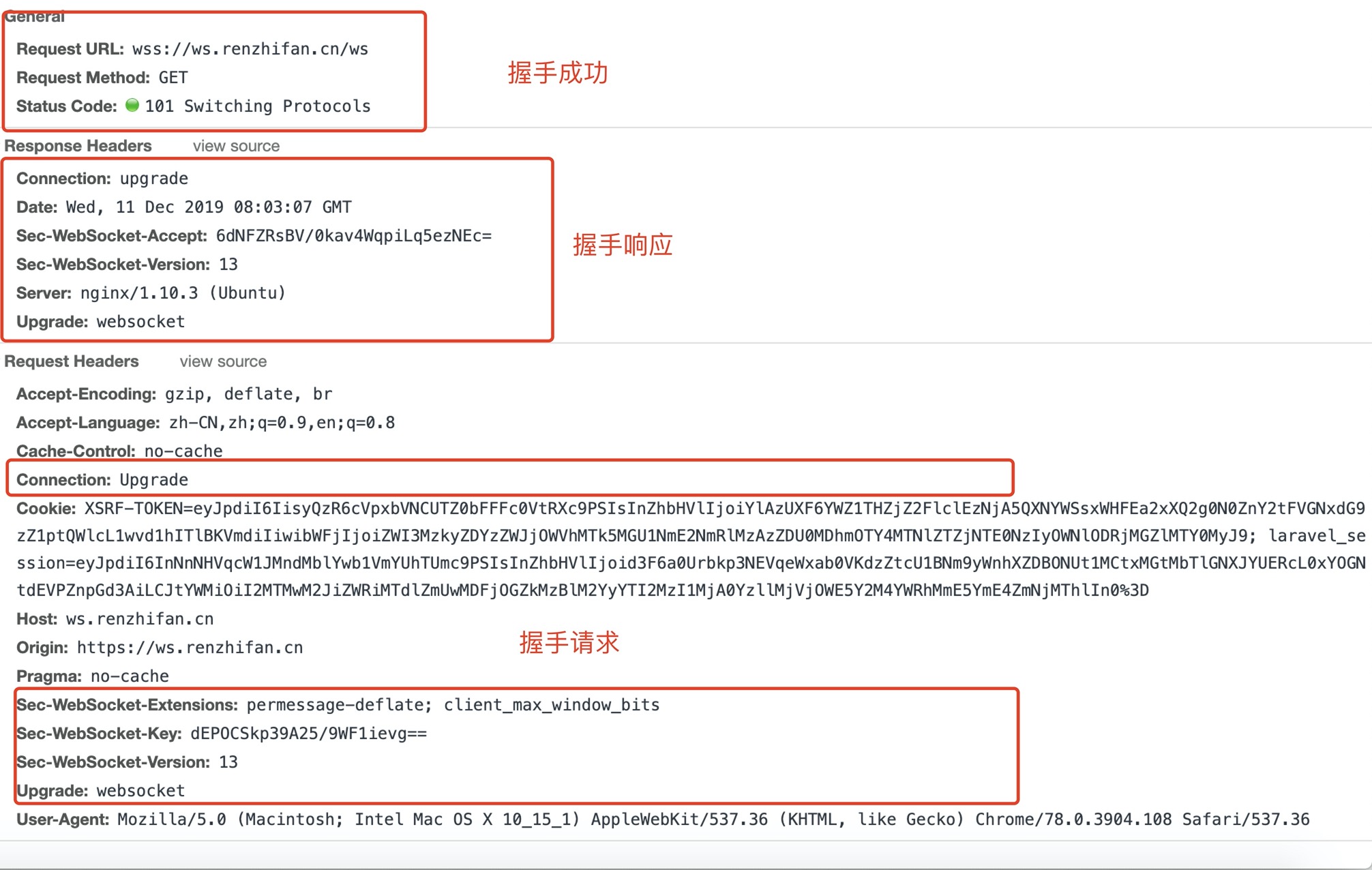

握手过程
